LIAN LI PC-O5SX ALUMINIUM TEMPERED GLASS MINI ITX CASING Malaysia

LIAN LI PC-O5SX ALUMINIUM TEMPERED GLASS MINI ITX CASING Malaysia

Status: In stock
RM 1418.00
Payment on delivery
Van chuyen don gianSimple shipping
San pham chat luong High quality products
Ban hang toan quoc Nationwide sales
Thanh toan khi nhan hang Simple shipping

  • - 120mm fan x 2 installed
  • - Black Interior
  • - HDD rack can support three 3.5" drives and one 2.5" drive.
  • - Supports SFX PSU
  • - Support for 2 x 2.5" drives on the MB tray or 1 x 3.5" & 1 x 2.5" (Occupies PCI slot space)
  • - Support for 2 x 2.5" or 1 x 3.5"/2.5" on the rear of the MB tray
  • - Supports 190mm VGA, 85mm Cooler, 140mm PSU
  • - Radiator Space: 60mm x 300mm x130mm
  • - 5mm Tempered glass side panel
  • - 2 x USB3.0 ports
  • - Slim ODD rack
  • - Dual VGA card support

PRODUCT INFORMATION:

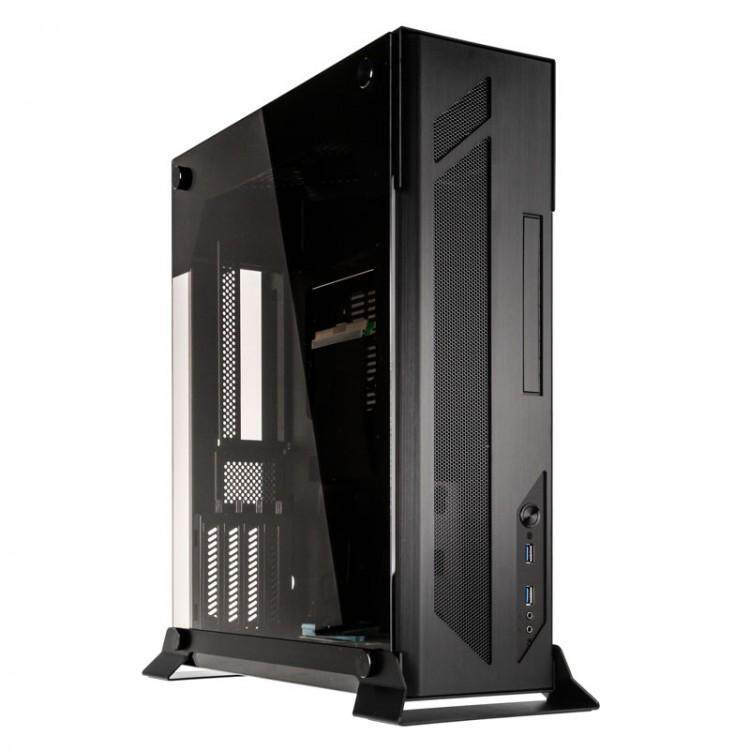

PC-O5SX MINI-ITX CHASSIS - BLACK

Lian-Li Industrial Co. Ltd, has launched the O Series open-air, wall-mountable chassis: PC-O5X, PC-O5SX, PC-O6SX and PC-O7SX. Previewed to the worldwide technology community in its prototype stage, the O Series chassis final design reflect the feedback of the DIY community, and feature oversized tempered glass windows, a PCI riser cards, and sleek aluminum construction.

FOUR OPEN-AIR, WALL-MOUNTABLE ALUMINUM CHASSIS

The new O series includes four chassis: the mini-ITX PC-O5, the mini-ITX PC-O5S, the micro-ATX PC-O6S, and the ATX PC-O7S. These aluminum constructed cases all feature a similar design and aesthetic differing in their hardware compatibility.

SHOW OFF YOUR HARDWARE IN SLIM PROFILE CHASSIS

Through the oversized tempered glass window, onlookers can see the entire build unrestricted. Graphics cards are installed parallel to the motherboard, keeping the chassis slim, thanks to the included PCI riser card and extension. A black anodized aluminum shield covers the hard drive cage to keep a super clean look.

CUSTOMIZABLE STORAGE OPTIONS

The O Series chassis give builders several options for storage installation. Hard drives can be mounted in the hard drive cage, hidden by an anodized aluminum shield, directly mounted on the motherboard tray, or installed on a removable bracket behind the motherboard.

WATER COOLING SUPPORT

The PC-O5S, PC-O6S, and PC-O7S support AIO water cooling systems. The “S” suffix in the aforementioned models denotes water cooling compatibility. The PC-O5S supports radiators up to 240mm, while the PC-O6S and PC-O7S supports 360mm radiators.

VERSATILE PLACEMENT

The O Series cases can be mounted to the wall, placed on a desk in the vertical position using the included aluminum stand with rubber grip, or arranged horizontally on four attachable feet with rubber padding.

FEATURES

- 120mm fan x 2 installed  - Black Interior  - HDD rack can support three 3.5" drives and one 2.5" drive.  - Supports SFX PSU  - Support for 2 x 2.5" drives on the MB tray or 1 x 3.5" & 1 x 2.5" (Occupies PCI slot space)  - Support for 2 x 2.5" or 1 x 3.5"/2.5" on the rear of the MB tray  - Supports 190mm VGA, 85mm Cooler, 140mm PSU  - Radiator Space: 60mm x 300mm x130mm  - 5mm Tempered glass side panel  - 2 x USB3.0 ports  - Slim ODD rack  - Dual VGA card support

SPECIFICATIONS

- Model: PC-O5SX  - Case Type: Mini Chassis  - Dimensions: (W)384mm, (H)465mm, (D)148mm  - Colour: Black  - Side Panel: Tempered Glass  - Body Material: Aluminum  - Net Weight: 6.4kg  - 5.25" Drive Bay: 1 (Slim ODD) or 3.5"/2.5" HDD x1  - Drive Bays: HDD Rack: 3.5" x3 + 2.5" x1, Behind the MB tray: 3.5" x1 + 2.5" x1 or 2.5" x2, On the MB tray: 3.5" x1 + 2.5" x1 or 2.5" x2 (Occupies PCI slot space)  - Expansion Slot: 4, PCI-E 16X Riser Cable: 1 (Gen 3.0)  - M/B Type: mini-ITX  - System Fan: Top: 120mm fan x 2: Rear: 140mm fan x1  - I/O Ports: USB3.0 x 2, HD Audio  - Maximum Compatibility: VGA length: 190mm (175mm when using a VGA card with a front-located power plug), PSU length: 140mm, Cooler height: 85mm  - Radiator Space: (W)300mm, (D)130mm, (H)60mm  - PSU Type: SFX PSU

Specifications of LIAN LI PC-O5SX ALUMINIUM TEMPERED GLASS MINI ITX CASING

  • Brand
    Lian Li
  • SKU
    406760813_MY-587718628
  • Warranty Period
    1 Year
  • Warranty Type
    Local Manufacturer Warranty
  • Model
    PC-O5SX
What’s in the box
1 X LIAN LI PC-O5SX ALUMINIUM TEMPERED GLASS MINI ITX CASING
